MIPI Interface

ECM 100

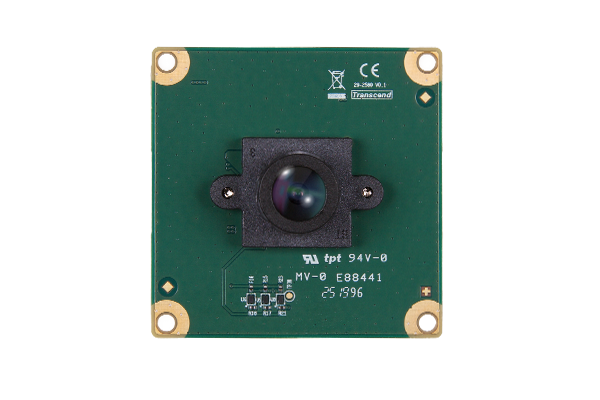

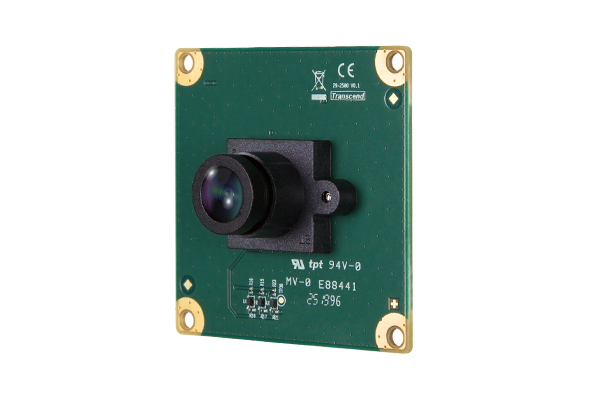

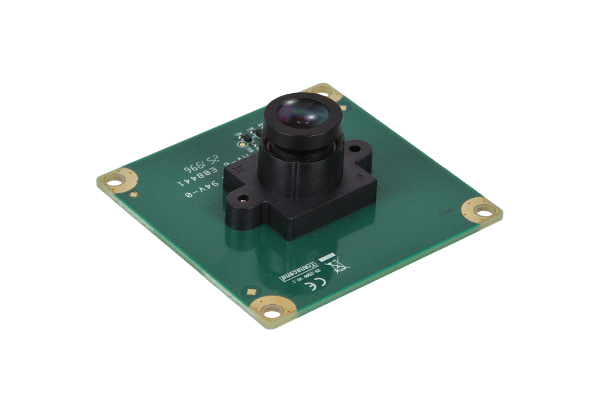

Designed for embedded systems and intelligent applications, Transcend’s industrial-grade ECM100 Embedded Camera Module is equipped with the high-sensitivity Galaxycore 2093 CMOS sensor. It delivers 2MP resolution and a 130° field of view, producing sharp, low-noise images even in low-light environments. Supporting the MIPI CSI-2 interface, the ECM100 can be seamlessly integrated into various embedded platforms, including AI edge computing, industrial inspection, and robotic systems.

With an operating temperature range of -30°C to 70°C and a robust, vibration-resistant design, the ECM100 ensures reliable performance in harsh environments. Flexible customization options—such as focal length, field of view, and FPC cable length—accommodate diverse project requirements, providing your system with high reliability and long-term supply assurance.


Характеристики Прошивки

  • Customize image parameters in the driver to ensure image quality meets customer requirements.
  • Provide ISP (Image Signal Processor) tools, allowing customers to fine-tune image parameters themselves and achieve optimal results in various shooting environments.
  • Auto Exposure Control (AEC) and Auto White Balance (AWB) provide quick and accurate adjustments for optimal image brightness and color fidelity.

Характеристики Оборудования

  • An integrated HDR (High Dynamic Range) function ensures clear and well-balanced images even in scenes with extreme contrast.
  • A 2.8 µm pixel size enables enhanced light sensitivity and superior image quality in various lighting conditions.
  • Support high frame rate, delivering smooth and detailed video capture for fast-moving subjects.
  • Its low power consumption design makes it ideal for battery-powered or energy-sensitive applications.
  • The module offers horizontal and vertical mirroring, allowing flexible image orientation to suit different installation requirements.

Характеристики

Внешний вид
Размеры38 mm x 38 mm x 16.13 mm (1.5" x 1.5" x 0.64")

Интерфейс
Интерфейс шины
  • MIPI CSI-2

Camera
CMOS Sensor
  • Galaxycore GC2093
Active Pixel1920 (H) x 1080 (V) = 2 MP
Pixel Size2.8µm x 2.8µm
Lens Field of View130°/105°/54°
Illumination Type
  • Front Side Illumination(FSI)
ADC Resolution
  • 10-bit ADC
Optical Format1/2.9"
Shutter Type
  • Rolling Shutter
Chromaticity
  • Color
Maximum Frame RateFull size @ 60 fps
Connector22 pin

Рабочая обстановка
Температура эксплуатации-30°C (-22°F) ~ 70°C (158°F)
Температура хранения-40°C (-40°F) ~ 85°C (185°F)

Информация о заказе

0GB
  • TS-ECM100M22
