CompactFlash Cards

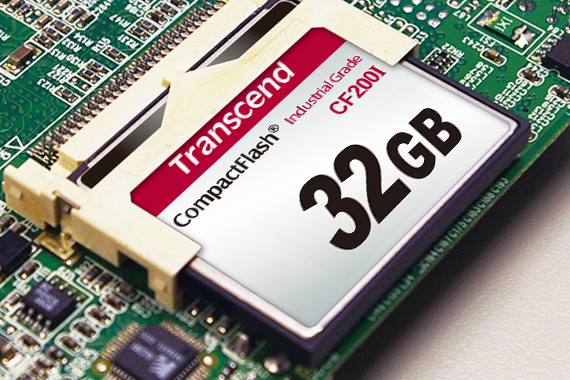

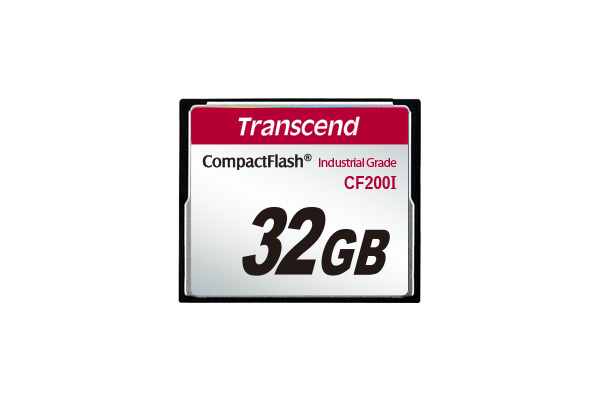

Industrial Temp CF200I CF Card

Built extra-rugged with excellent temperature flexibility and high performance, Transcend's CF200I Industrial Temp CF cards are specifically designed for industrial use and mission-critical applications.

Share

Features

  • CompactFlash Specification Version 4.1 Compliant
  • RoHS compliant product
  • Support S.M.A.R.T (Self-defined)
  • Support Security Command
  • Support Global Wear-Leveling, Static Data Refresh, Early Retirement, and Erase Count Monitor functions to extend product life
  • Operation Modes: PC Card Memory, PC Card IO, True IDE
  • True IDE Mode supports: UDMA0-5, MDMA0-4, PIO0-6 (UDMA5 as default)
  • True IDE Mode: Fixed Disk (Default)
  • PC Card Mode: Fixed Disk (Default)
  • Power Shield prevents data loss in the event of a sudden power outage

Характеристики

Interface (connector) Compact Flash, 50P
Form Factor Compact Flash Card
Dimensions 42.8mm × 36.4mm × 3.3mm (1.69" x 1.43" x 0.13")
Flash Type SLC, MLC for 32GB
Capacity 128MB / 256MB / 512MB / 1GB / 8GB / 16GB / 32GB
Max. R/W Performance*
(Vary by density)		 Read: 92MB/s, Write: 70MB/s
Operating Voltage 3.3V±5% or 5V±10%
Power Consumption 0.76W
Operating Temperature -40℃~85℃
Storage Temperature -55℃~100℃
Humidity 0%～95%
Shock Acceleration 490m/s^ 2; standard holding time 11 ms, semi-sine wave, velocity change 3.44 m/s
Vibration 20G (Peak-to-Peak), 20Hz to 2000Hz(Frequency)
MTBF 4,000,000 hours
Warranty Two-year Limited Warranty
*Please access here for more information about Transcend Warranty Policy.
*Note Speed may vary due to host hardware, software and usage.

Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios.
For special applications and environments, it is strongly suggested to contact Transcend beforehand for clarification.

Информация о заказе

128MB
  • TS128MCF200I Industrial Grade SLC
256MB
  • TS256MCF200I Industrial Grade SLC
512MB
  • TS512MCF200I Industrial Grade SLC
1GB
  • TS1GCF200I Industrial Grade SLC
8GB
  • TS8GCF200I Industrial Grade SLC
32GB
  • TS32GCF200I Industrial Grade MLC
